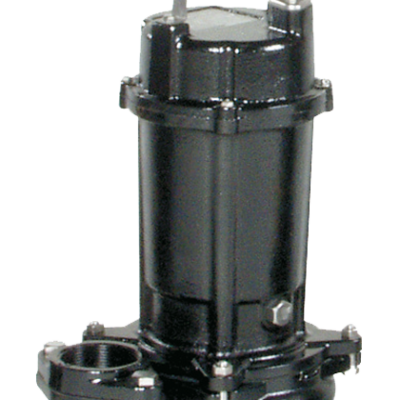

MODEL DVS

Model DVS is s EBARA electric submersible pumps, semi-vortex, in cast Iron

APPLICATIONS

  • Effluent collection tanks

  • Ideal for application with effluent containing soft or fibrous solids

  • Lifting or clear or grey water with suspended particles

  • Septic tanks (imhoff)

SPECIAL FEATURES

  • Semi-wortex non-clogging impeller enables pumping of foreign matter with dimension up to 70% of the delivery port diameter

  • Easy maintenace

INSTALLATIONS

SKU: MODEL DVS Category:



SPECFICATIONS
Liquid Handled Type of liquid Rain water, grey water, clean water
Temperature [°C]

Max: 40
Maximum working pressure [bar] 10
Construction Impeller Semi-vortex
Shaft seal type

Mechanical seal

SiC/Sic/NBR - Impeller Side

Carbon/Ceramic/ NBR - Motor Side
Bearing Sealed ball bearing
Pipe Connection Suction [inch] -
Discharge [inch] EN 1092-2 DN40, 50, 65, 80
Material Casing Cast Iron
Impeller

Cast Iron
Shaft SS403



MOTORS
Type
Single Phase Three Phase
No. of Poles 2
Rotation speed [min-1] ≈ 2800
Power rating [kW]   0.4-7.5
Frequency[Hz] 50
Voltage [V]

380±10%
Efficiency level   IE1
Protection degree IP68



Model Frequency (Hz) Q max (m3/h) Hmax (m) Power P2 (HP) Price Download the PDF
MODEL DVS 50Hz 60 m3/h 23m 0.4-3.7kw Liên hệ Dowload
MODEL DVS - New range 50Hz 5.5-7.5kw Liên hệ Dowload
