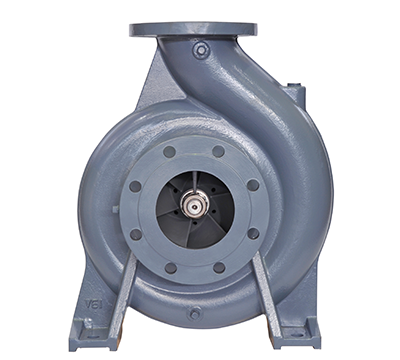

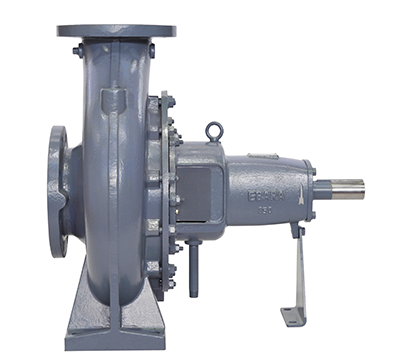

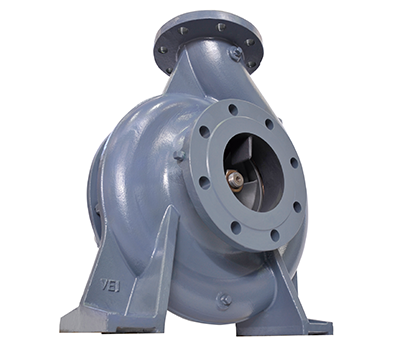

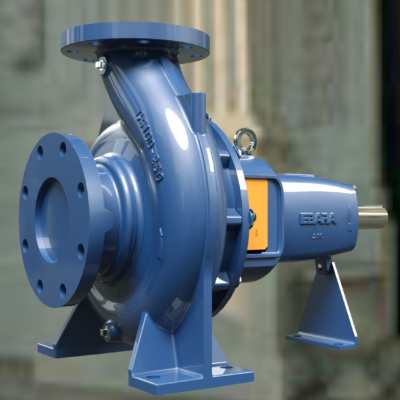

MODEL GS

EBARA NORMALIZED CENTRIFUGAL ELECTRIC PUMPS according to EN 733 in cast iron. It’s applied the last technology from EBARA Corporation to achieved highest performance and robust. Model GS is compliance to EN733 which recognized as common standard for pump industry.

APPLICATIONS

• Pressurization and washing systems

• Semiconductor industry

• Pressurization

• Firefighting systems

• Heating systems

• Conditioning and cooling systems

• Water supply for municipal services

• Irrigation

• Agriculture

SKU: MODEL GS Category:
SPECFICATIONS
Liquid Handled Type of liquid Clean water, Raw water, Glycol
Temperature [°C] -10℃  to  140°C
Maximum working pressure [MPa]  DIN-PN16, DIN-PN25 (Optional)
Construction Impeller Closed
Shaft seal type Mechanical Seal , Gland Packing (Optional)
Bearing Shield ball bearing
Pipe Connection Suction  DIN-PN16
Discharge  DIN-PN16
Material Casing Cast Iron or Ductile Cast Iron
Impeller Cast iron or Ductile Cast Irons,Bronze, SS304(Optional)
Shaft SUS431eq. or SUS420J2




MOTORS
Type Electric – TEFC
No. of Poles 2,4
Rotation speed [min-1] 2900/1450
Power rating [kW] 0.75-355
Frequency[Hz] 50
Voltage [V] 380
Efficiency level IE1, IE2, IE3
Protection degree IP55
Brands ABB,Teco, Enertech, Elektrim



DIESEL ENGINE
Engine Type Diesel 4 stroke
Rotation speed [min-1] 1500, 3000
Brands FPT, Hyundai, Deawoo, Doosan, Korman, LD, Versar, ….



Model Frequency (Hz) Q max (m3/h) Hmax (m) Power P2 (HP) Price Download the PDF
Model GS – ASIAN Version 50 1300 150 0.75-355 Dowload
Model GS – Europe Version 50 1300 150 0.75-355 Dowload
